Arc Welding Machine (Stud type)

Tiny sub heading that focuses on the topic mentioned above

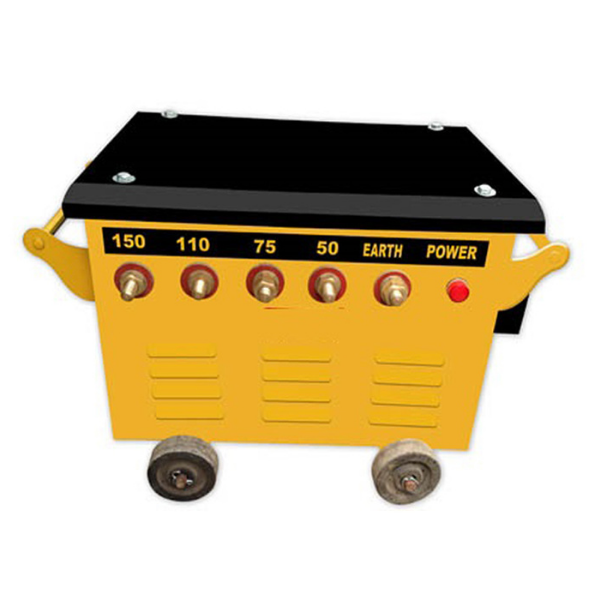

Arc Welding Machine(Stud type)

Stud Type Arc Welding Machine is perfectly suited for fabrication industries, engineering workshops, cutting jobs, construction sites, repairing works, and every small, medium and large scale machining industry. It is used for many types of heavy duty applications. It is made up of high grade materials that makes it energy saving. Sudershan Machinery deals in different kinds of welding machines.

Technical Specifications


Model No.	SEW150	SEW200	SEW250	SEW300	SEW400
Nominal Current Output	150 amp	200 amp	250 amp	300 amp	400 amp
Primary Voltage	220/440 volts	220/440 volts	220/440 volts	220/440 volts	220/440 volts
Phase	1/2 phase	1/2 phase	1/2 phase	1/2 phase	1/2 phase
Frequency	50 Hz	50 Hz	50 Hz	50 Hz	50 Hz
Open Circuit Voltage	45 volts	50 volts	50 volts	60 volts	60 volts
Welding Current Range	45-150 amps	50-200 amps	50-250 amps	60-300 amps	60-400 amps
Maximum continuous automatic welding current at 100% cycle	90 amps	150 amps	180 amps	220 amps	310 amps
Cooling	Natural Air	310 amps	Natural Air	Natural Air	Natural Air
Welding Electrode Size(min/ max)	2 / 3.15	2 / 3.15	2 / 3.15	2.5 / 4	2.5 / 4
Insulation Class	A	A	A	A	A

What is stud-type welder ?

A stud welding machine is a specialized welding equipment used primarily for attaching metal studs, pins, or fasteners to base metal workpieces. Its high-speed operation and portable compact design make it popular in all kinds of welding machines. They are valued for their speed, precision, and ability to create strong welds without the need for additional materials like filler metal or flux.

Components of a stud-type welder

Power Source
Control Panel
Welding Gun
Chuck
Cables and Connectors
Ground Clamp

Applications

Construction
Ship Building
Industry Manufacturing
Automotive Engineering
Electronics Sectors
