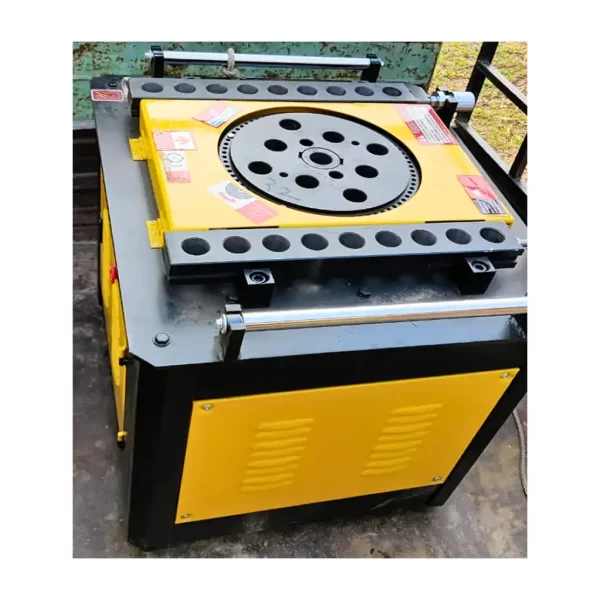

Bar Bending Machine
Bar Bending Machine
A specially designed equipment is used to bend steel bars into different angles and arcs as per the customer’s requirement. A bus bar is a thick bar of copper used in electrical distribution systems. It is electrically powered and highly durable. Sudershan Machinery offers high-quality bar bending machines across India at a reasonable cost.
- It is widely used in the construction of roads, bridges, tunnels, and other giant projects.
- Its applications are -Electrical panel manufacturing, Transformer manufacturing, Power distribution systems, and renewable energy sectors.
Technical Specifications
|
|
|
|---|---|
|
Model No.
|
SMBAR-01
|
|
Bending Diameter
|
32mm
|
|
Bending Rotation Speed
|
5-15 r/min
|
|
Power Source
|
Electric
|
|
Motor Power
|
3 kw / 4HP
|
|
Motor Speed
|
1440 r/min
|
|
Voltage
|
415 V
|
Bar Bending Machine :
A bar bending machine is a type of machinery to work on a wide variety of steel bars, TMT bars, and reinforcement bars. The bar, also termed rebar is used in construction works. A steel bar bending machine can bend steel bars from 0 to 180 degrees and in different ranges of diameter.
Parts of a bar bending machine :
- It consists of an electric motor, a circular plate, a gear drive, a shaft, and a coupling.
- It has two rollers – a moving bending roller and a center roller. The moving bending roller pushes the bar in the bending direction. The center roller remains stationary. The bar rotates around this roller.
- An electric motor transmits power to the gearbox that regulates the speed.
- A circular disc with holes in it bends the bar using a gearbox. It can bend bars in a particular range.
- Adjustable stopper, main switch, power indicator light.
- Angle setter & Angle stopper.
- Operation button ON/ OFF.
- Emergency stop button.
- Foot operated switch.
How to use it?
- Select the correct rollers and set the bars to be bent.
- After starting the machine, place the bar between the center and the bending roller on the surface.
- Make sure the bar is parallel to the front edge of the machinery by adjusting using an adjustable stopper.
- Make a test bend and set the angle using an angle setter.
Sudershan Machinery offers an ideal range of bar bending machines at a competitive cost. We are the supplier of high-quality automatic steel bar bending machines with a positive feedback. Simple to operate with good performance & reliability. We have different models of bar bender like 25MM bar bender, 32MM steel bar bender and more. Bus bar processing equipments include- bar cutter, bar straightener.
