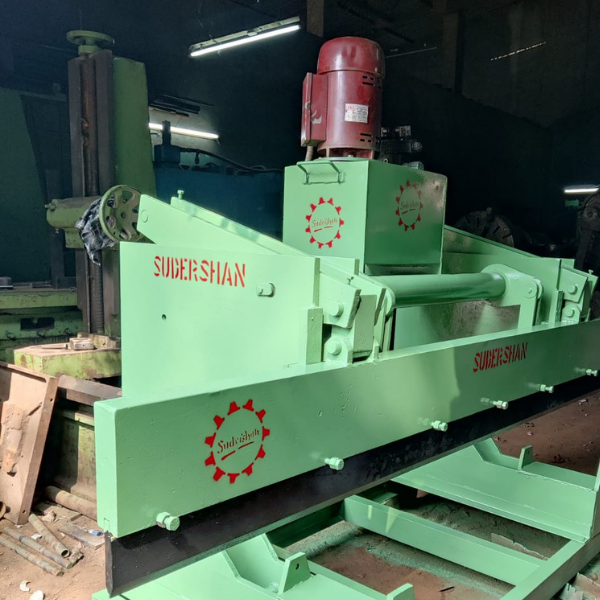

Hydraulic Sheet Bending Machine
Hydraulic Sheet Bending Machine
We manufacture both hydraulic sheet bending & manual sheet bending machines as per different performance specifications. We manufacture using high-quality materials to provide stability and rigidity during bending operations. We are most popular in manufacturing metal machines in India & working progressively to make metal fabrication machinery more user-friendly and innovative in design.
- More rigid and constructive frame than manual bending machine
- Can Bend Thicker Sheet Materials more easier.
- Easily operable and less workforce needed to operate.
Technical Specifications
|
|
||||||
|---|---|---|---|---|---|---|
|
Model No.
|
Working Length
|
Material Thickness (mm)
|
Power
|
Bending Material
|
Automation Grade
|
Maximum Bending Radius (mm)
|
|
HSB01
|
2200 mm (7 ft)
|
1
|
Hydraulic
|
Stainless Steel
|
Semi-Automatic
|
0-50
|
|
HSB02
|
2200 mm (7 ft)
|
1.5
|
Hydraulic
|
Stainless Steel
|
Semi-Automatic
|
0-50
|
|
HSB03
|
2500 mm (8 ft)
|
1
|
Hydraulic
|
Stainless Steel
|
Semi-Automatic
|
0-50
|
|
HSB04
|
2500 mm (8 ft)
|
1.5
|
Hydraulic
|
Stainless Steel
|
Semi-Automatic
|
0-50
|
|
HSB05
|
2500 mm (8 ft)
|
2
|
Hydraulic
|
Stainless Steel
|
Semi-Automatic
|
0-50
|
|
HSB06
|
2500 mm (8 ft)
|
2.5
|
Hydraulic
|
Stainless Steel
|
Semi-Automatic
|
0-50
|
Hydraulic Sheet Bending Machine Working Principle
A hydraulic bending machine uses the relative motion of the upper and lower worktables driven by hydraulic transmission to bend the sheet metal. The worktables are connected to the frame with a hydraulic cylinder. This sheet metal bending machine is preferable than the manual sheet bending machine because it can bend the thicker materials and is easier to control the bending process.
How a hydraulic sheet bending machine is different from the manual sheet bending machine ?
The only difference between manual and hydraulic plate bending machines is that the latter uses hydraulic force to bend the metal sheet. It consists of a hydraulic pump, valves, and hoses to apply pressure to bend the tool.
Features & Applications
- Features
- Designed for SS and MS steel sheet plates.
- Reduces manual setups & increases efficiency and productivity.
- Offers more safety and precision.
Applications
- Automotive Industry
- Electronics Industry
- Metal Fabrication Industry
- Furniture Manufacturing Plant
- Appliance Manufacturing Plant
- Aerospace Industry
