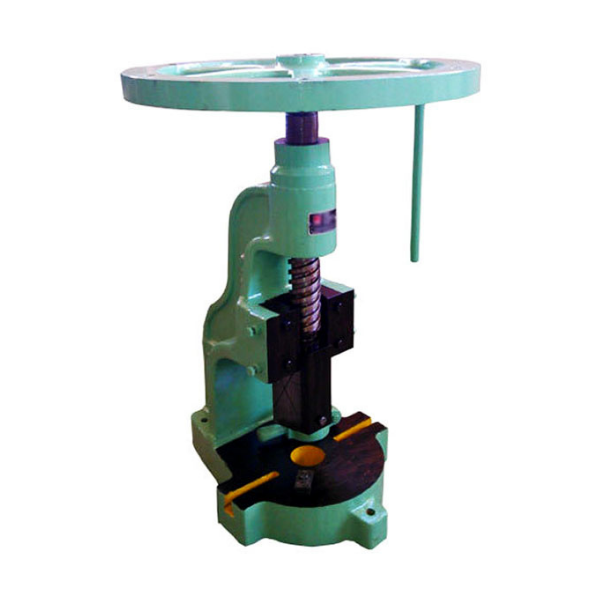

Fly Press Machine

From fly press machine to hydraulic press, Sudershan Machinery provides you a wide range of excellent quality of press machines. We are among the top supplier of press machines across PAN India. It is operator friendly and used while manufacturing various industrial mechanical parts and gears.

Technical Specifications


Model No.	SMFP0	SMFP1	SMFP2	SMFP3	SMFP4	SMFP5	SMFP6
Centre to Back	76 mm	89 mm	95 mm	114 mm	121 mm	197 mm	229 mm
Base to Guide	114 mm	127 mm	146 mm	171 mm	184 mm	127 mm	152 mm
Diameter of Screw	38 mm	42 mm	42 mm	48 mm	48 mm	48 mm	58 mm
Hole in Bed (Without Ring)	44 mm	51 mm	64 mm	76 mm	89 mm	102 mm	114 mm
Stroke	82 mm	102 mm	114 mm	152 mm	133 mm	152 mm	178 mm
Height of the Body	406 mm	502 mm	546 mm	610 mm	720 mm	850 mm	990 mm
Size of Bed (Front to Back)	146 mm	165 mm	190 mm	228 mm	265 mm	312 mm	345 mm
Size of Bed (Left to Right)	98 mm	120 mm	139 mm	171 mm	210 mm	255 mm	310 mm
Hole in Ram (Diameter)	19 mm	19 mm	19 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
Hole in Ram (Deep)	38 mm	38 mm	38 mm	38 mm	38 mm	38 mm	51 mm
Length of Screw	305 mm	419 mm	419 mm	469 mm	570 mm	660 mm	780 mm
Diameter of Flywheel	N/A	406 mm	457 mm	534 mm	635 mm	770 mm	920 mm

Features :

Durable finish
Precisely engineered
Superior performance / High operational fluency

Applications :

Sheet cutting industry
Drilling and cutting units
Gear and shaft manufacturers
